About // GB Box Van Trailer

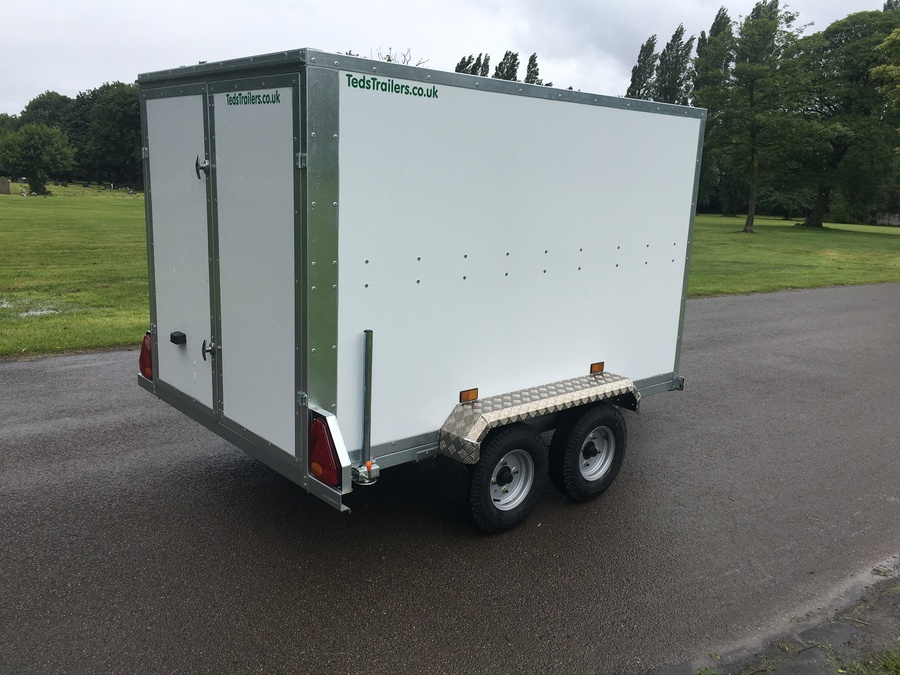

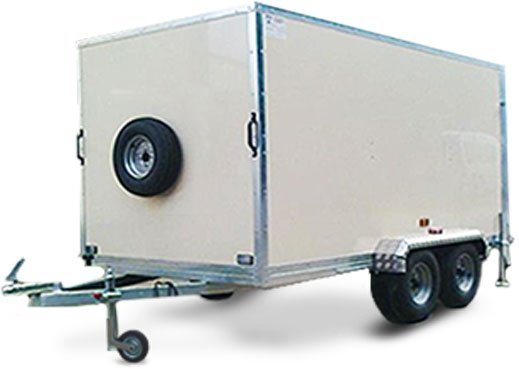

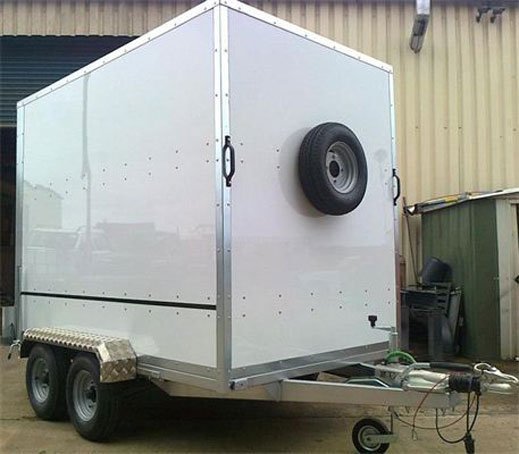

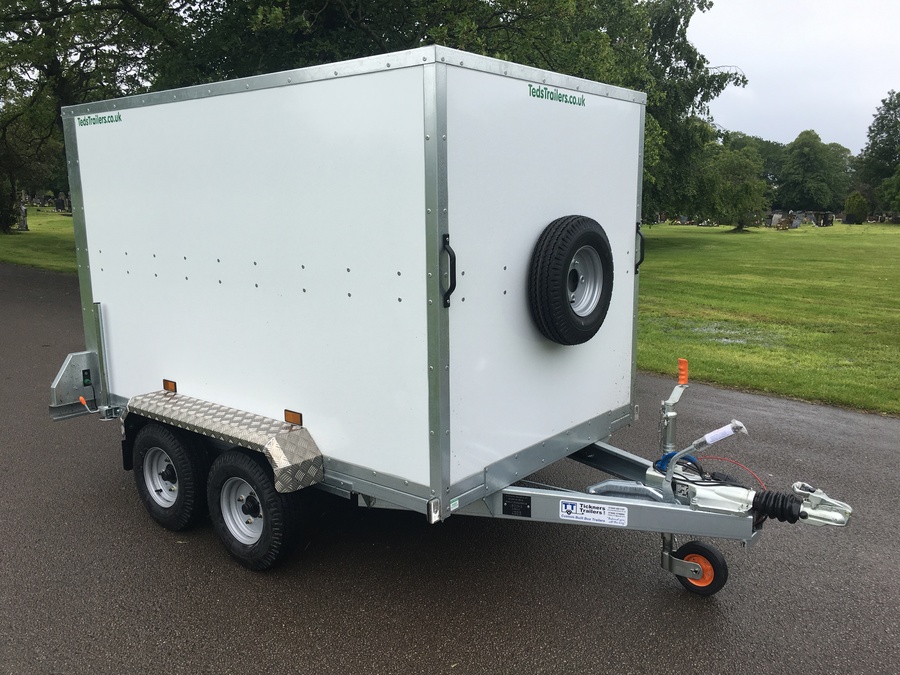

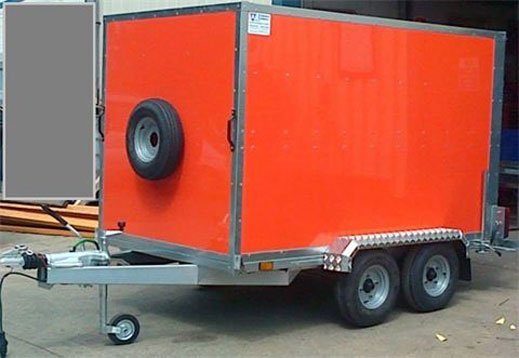

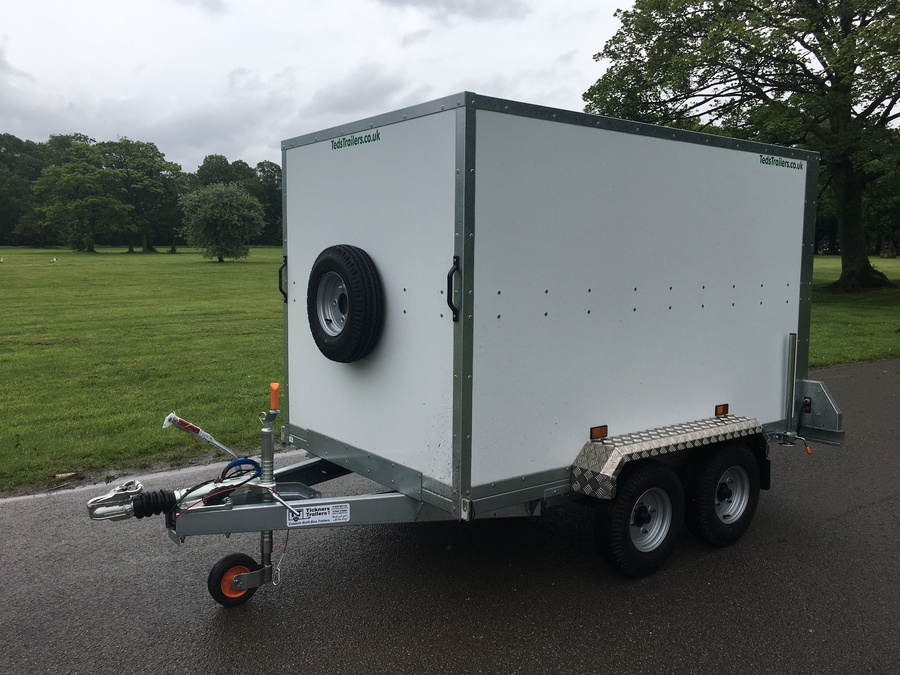

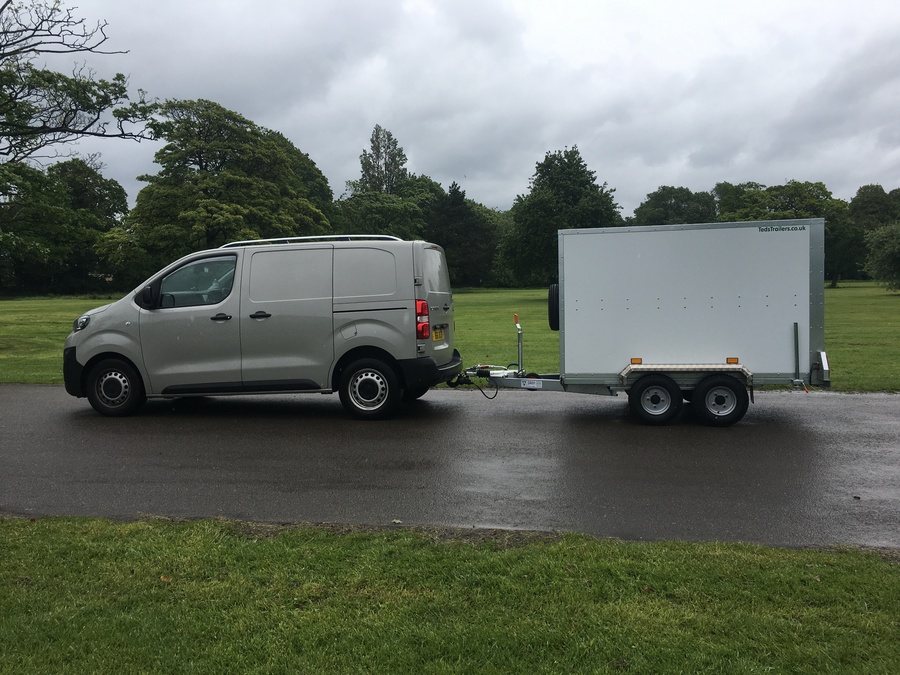

Tickner's GB Box Van Trailer.
The GB Box Trailer range is very popular with Scout Groups, White Water Rafting Clubs.
Trailer Specification
- Twin Axle Unbraked 1800kg
- Standard Colour Black or White
- Spare Wheel

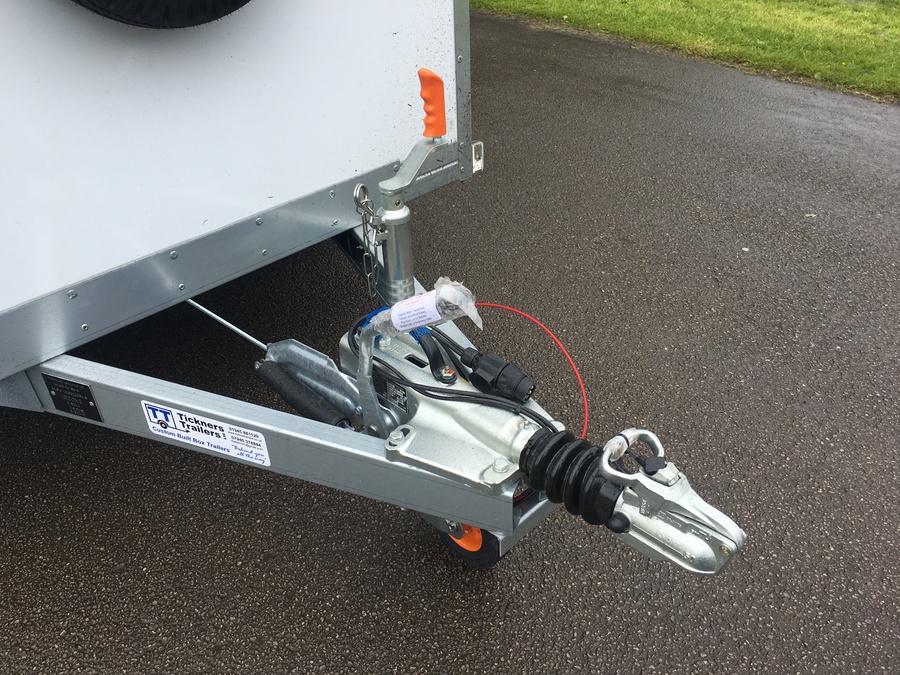

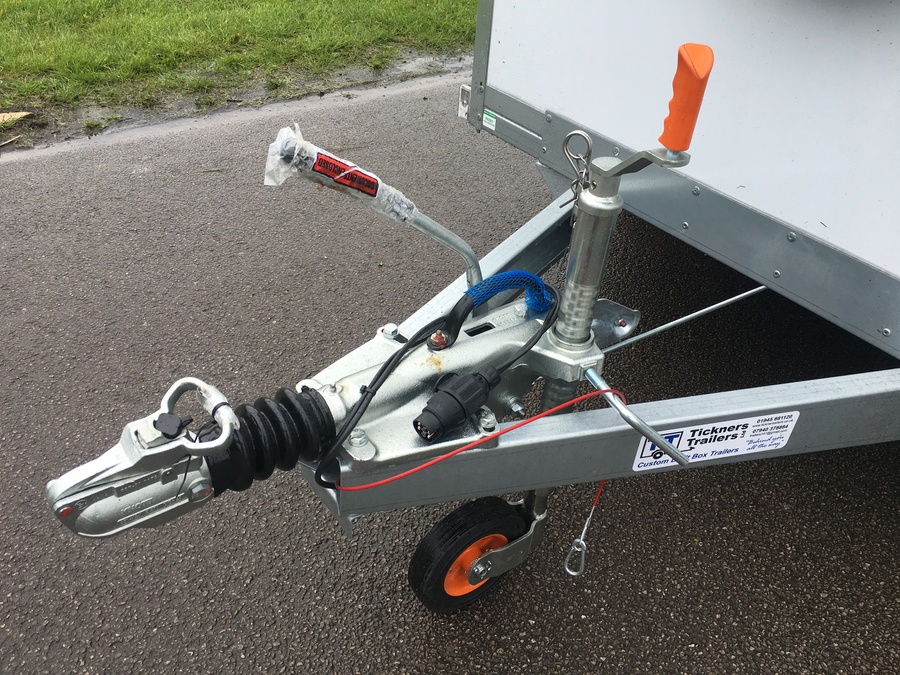

- Jockey Wheel
- Rear Prop Stands
- Grab Handles
- 4 Small Tie Rings
- Shoring Rail
- Rear Barn Doors
Optional Extras
- Side Access Door
- Shaped Front No Door
- Shaped Front with One Door
- Shaped Front with Two Doors
- Ramped Tailgate 5ft or 6ft Tall
- Ramped Infill 5ft or 6ft
- Colour Options
- Roof Bars x2
Pricing
Specifications
Pricing
| Part | Price |
|---|---|
| GB755 Doors | £4000.00 |
| GB855 Doors | £4160.00 |
| GB955 Doors | £4320.00 |
| GB155 Doors | £4480.00 |
| GB756 Doors | £4425.00 |
| GB856 Doors | £4585.00 |
| GB956 Doors | £4745.00 |
| GB156 Doors | £4905.00 |
| Extra for 6ft Wide (Braked Only) | £540.00 |
| Ramped Tailgate 5ft Tall | £350.00 |
| Ramped Tailgate 6ft Tall | £465.00 |
| Ramp Infill 5ft | £150.00 |
| Ramp Infill 6ft | £180.00 |
| Ramped Tailgate 6ft x 6ft Tall | £590.00 |
| Ramped Infill 6ft x 6ft Tall | £230.00 |
| Shaped Front No Door | £357.00 |
| Shaped Front with One Door | £470.00 |
| Shaped Front with Two Doors | £585.00 |
| Side Access Door | £210.00 |
| Colour Options | £230.00 |
| Roof Bars x2 | £135.00 |
| Roofs Bars x 2 6ft Wide | £145.00 |

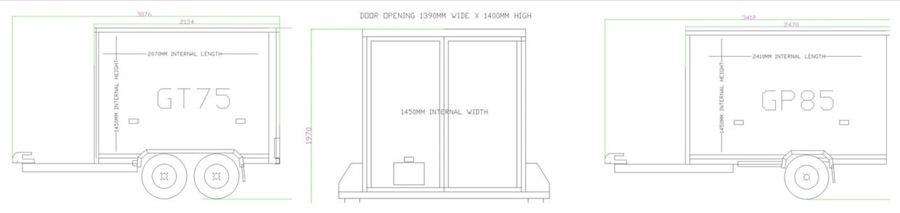

Specifications
| Trailer | GB755 | GB855 | GB955 | GB756 | GB856 | GB956 | GB155 | GB156 | Shaped Front | Ramped Tailgate |
|---|---|---|---|---|---|---|---|---|---|---|
| Gross Weight | 1800kg | 1800kg | 1800kg | 1800kg | 1800kg | 1800kg | 1800kg | 1800kg | ||
| Unladed Weight | 405kg | 450kg | 496kg | 440kg | 475kg | 520kg | 540kg | 565kg | +40kg | +10kg |
| Internal Length | 2100mm | 2420mm | 2710mm | 2100mm | 2420mm | 2720mm | 2965mm | 2965mm | +285mm | -25mm |
| Internal Width (5ft) | 1455mm | 1455mm | 1455mm | 1455mm | 1455mm | 1455mm | 1455mm | 1455mm | ||
| Internal Width (6ft) | 1755mm | 1755mm | 1755mm | 1755mm | 1755mm | 1755mm | 1755mm | 1755mm | ||
| Internal Height | 1470mm | 1470mm | 1470mm | 1920mm | 1920mm | 1920mm | 1470mm | 1920mm | ||
| Overall Length | 3370mm | 3550mm | 3835mm | 3165mm | 3550mm | 4235mm | 4235mm | 4235mm | 4235mm | +250mm |
| Overall Width | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250 (6ft) | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250mm (6ft) | 1950mm (5ft) 2250mm (6ft) | ||
| Overall Height | 1960mm | 1960mm | 2410mm | 1960mm | 2410mm | 1960mm | 1960mm | 1960mm |
Register Your Interest
Trailer Deliveries
Tickner's Trailers - Manufacturers Delivery Charge - £84.00
